The DR400

The DR400 is the smallest and most versatile monitor in the line-up of cardiac monitors from Northeast Monitoring, Inc.

Weighing in at just 33 grams or 1.2 ounces, the showerable 3-lead patch style recorder solves your remote cardiac monitoring needs.

Product Features:

  • Up to 14-day 3-channel Holter
  • 30-day MCT/Event monitoring
  • 2 or 3-lead electrode patches available
  • Showerable
  • Comes with docking station for charging and connecting to PC
  • Compatible with LX Remote and HE/LX Analysis software
  • Use PCPatch utility for easy setup and data transfer
  • Wireless capability for viewing ECG at startup

Technical Specs

Recording duration:
  • 14-day Holter, with single charge
  • For MCT/Event, patient should recharge recorder every 14 days
Recording bandwidth:
  • 0.05 – 70 Hz
Resolution:
  • 12-bit, 12.50 μV/LSB
Sampling rate:
  • 180 samples/second
Dimensions:
  • 6.8 cm x 3.9 cm x 1.3 cm
  • (2.7 in x 1.5 in x 0.5 in)
Weight:
  • 33 grams (1.2 oz) with internal battery
Power:
  • Internal lithium, USB charge
Patient Data File Size:
  • 25MB per day (Holter)
Patient Patch options:

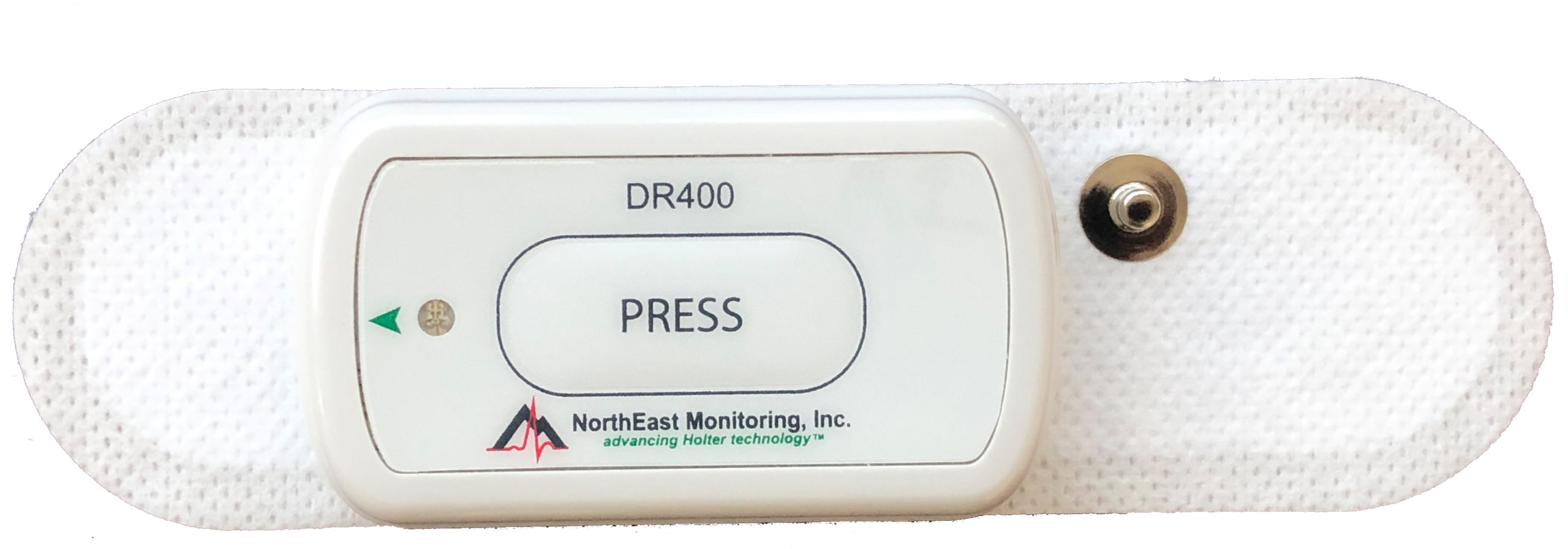

  • 1-lead patch (1CH)
  • 1-lead patch with reusable lead wire (3CH)
  • 3-lead patch (3CH)
  • 3-lead adapter (3CH)

Accessories

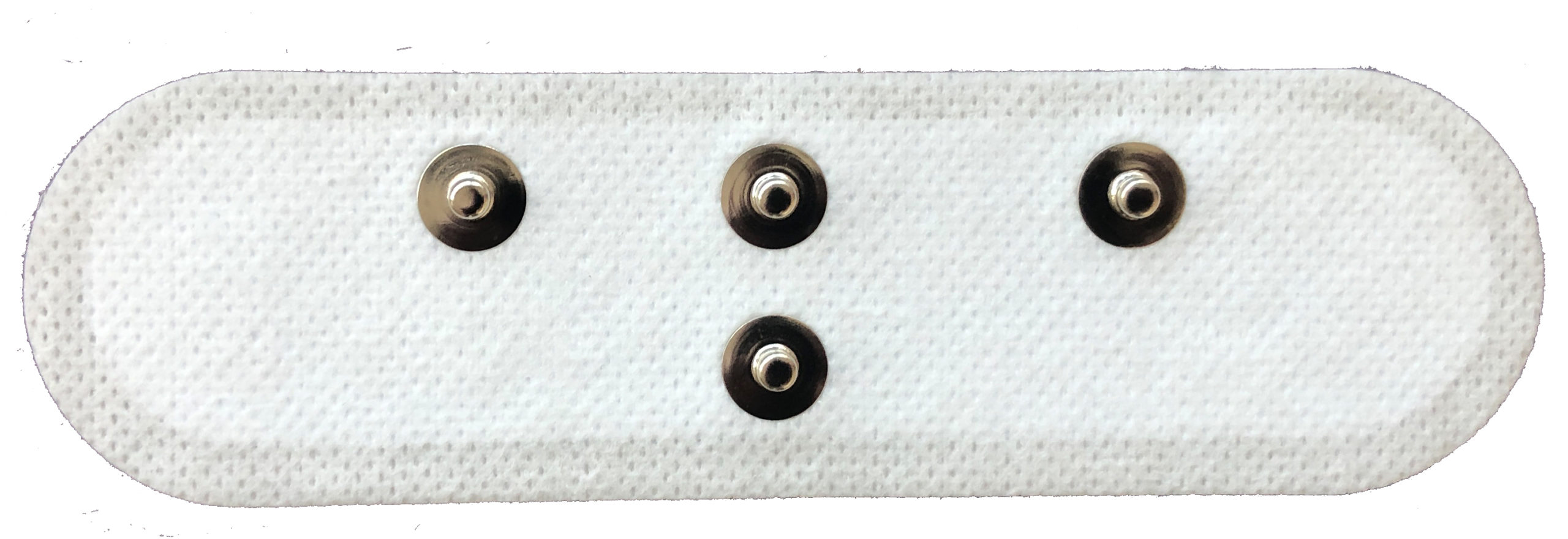

  • 1-lead electrode patch - NEMEL002

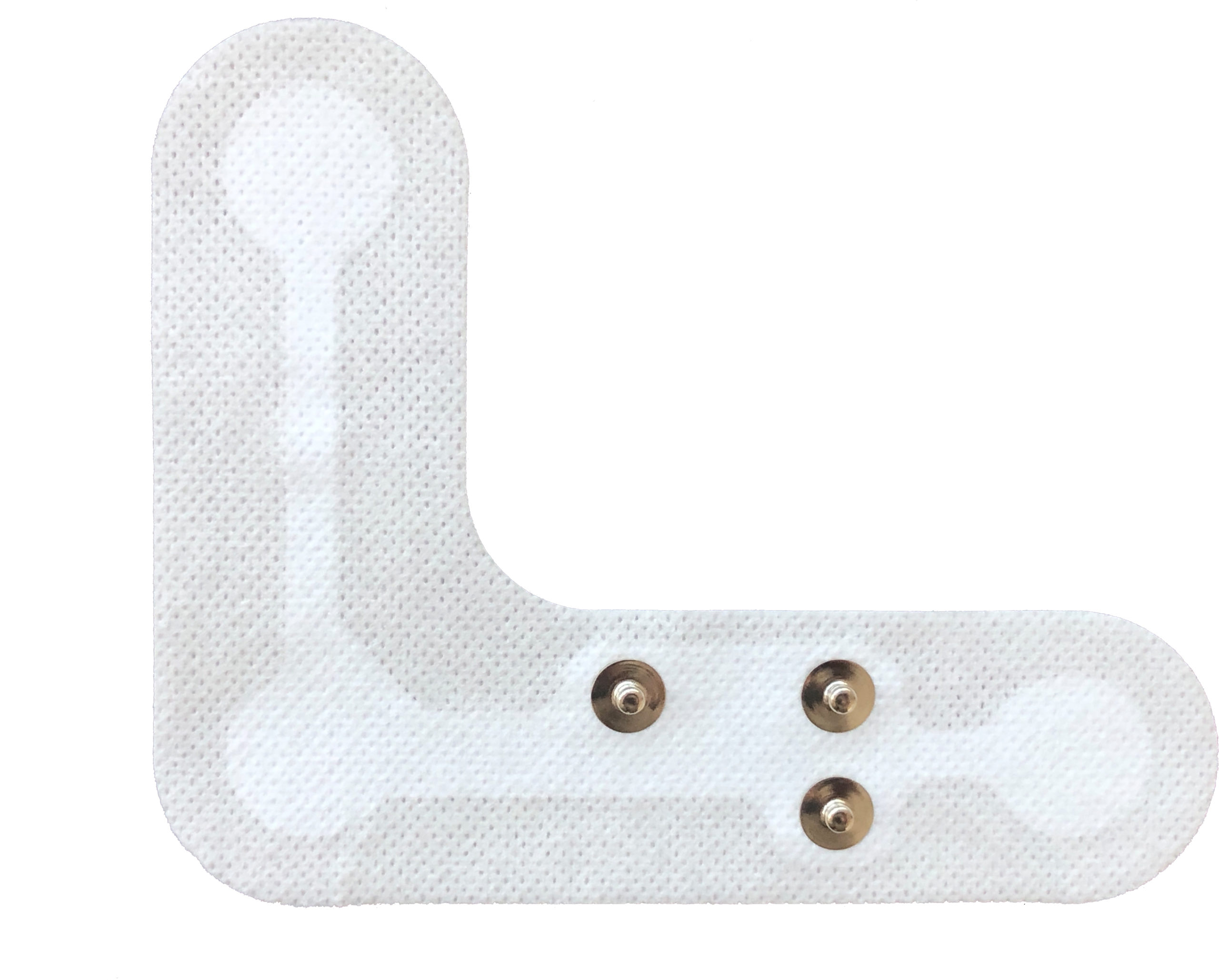

  • 3-lead electrode patch - NEMEL003

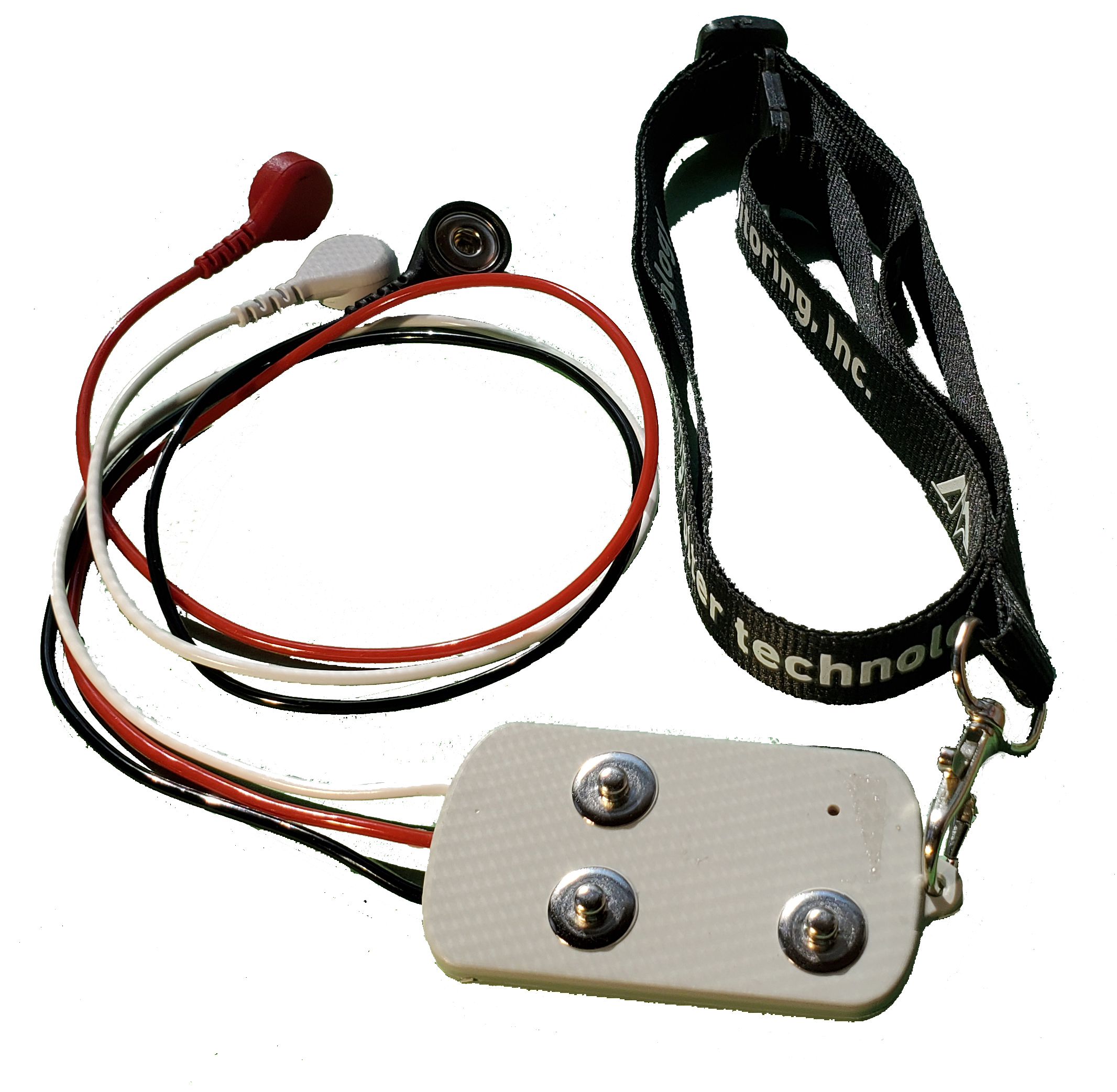

  • 3-Lead Adapter Cable with Lanyard - NEMCA162

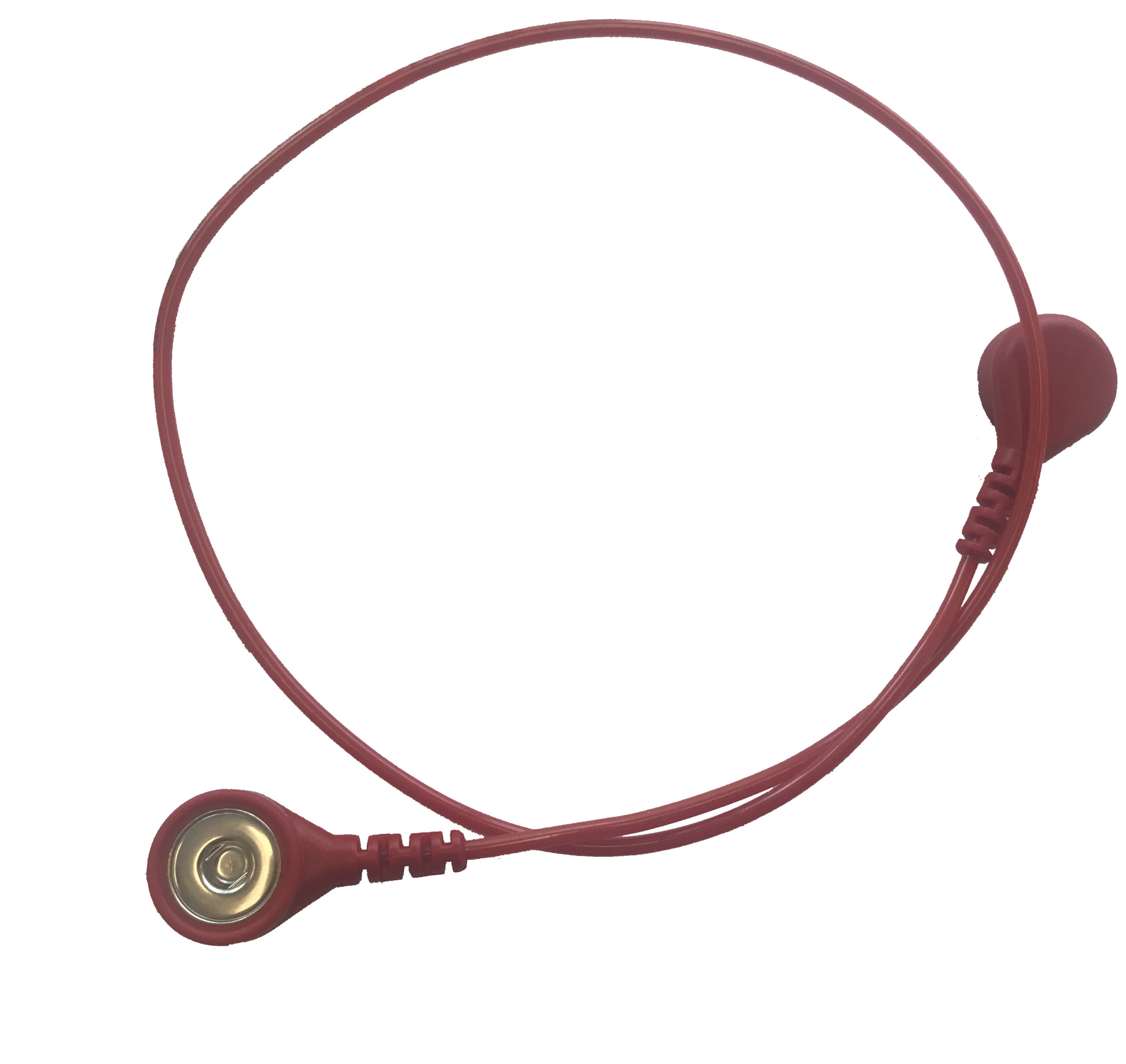

  • Extended Patient Lead 16`` for use with the NEMEL002 - NEMCA161

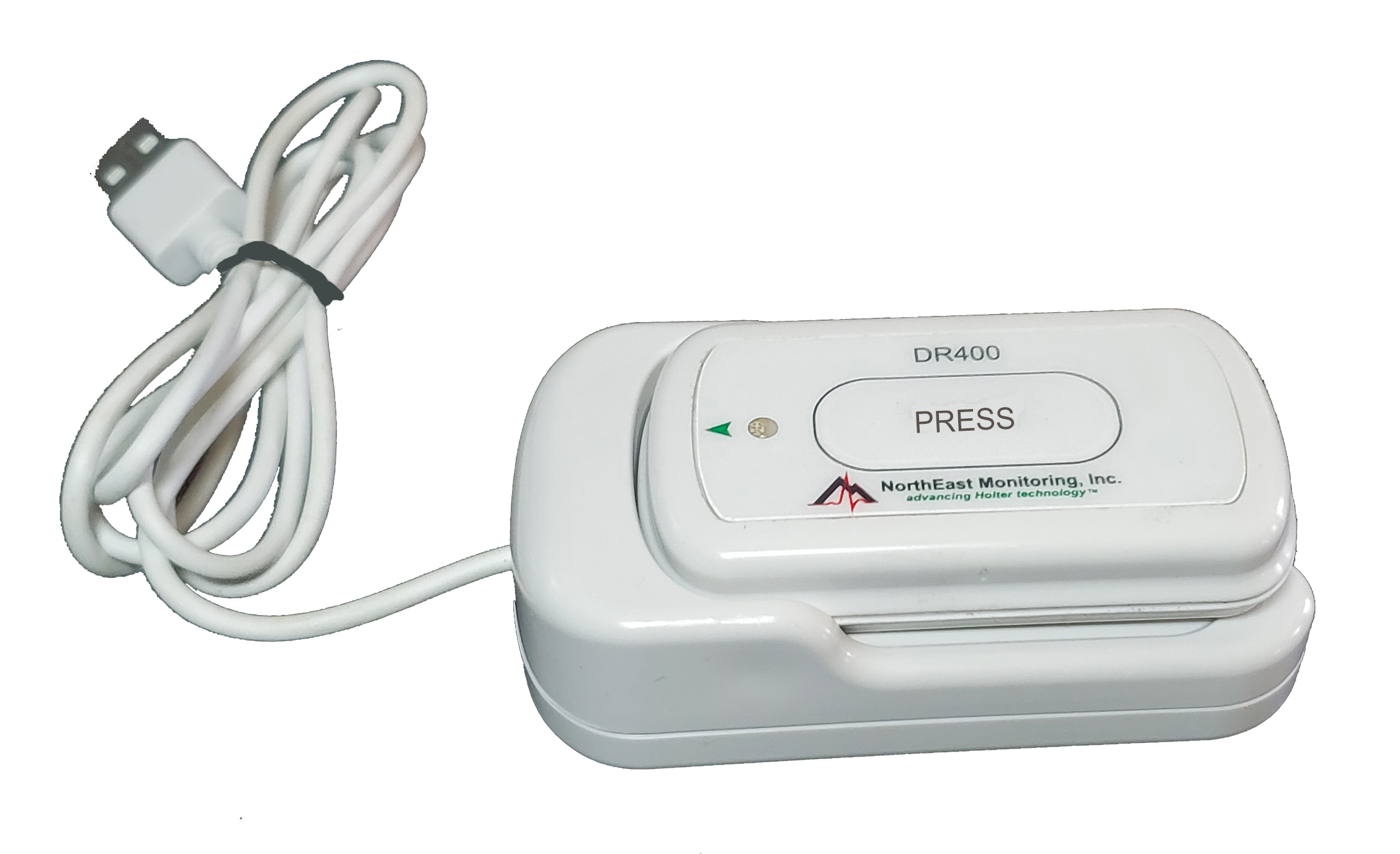

  • DR400 Power Dock Station and Power Adapter (NEMK199 + NEMP00511)

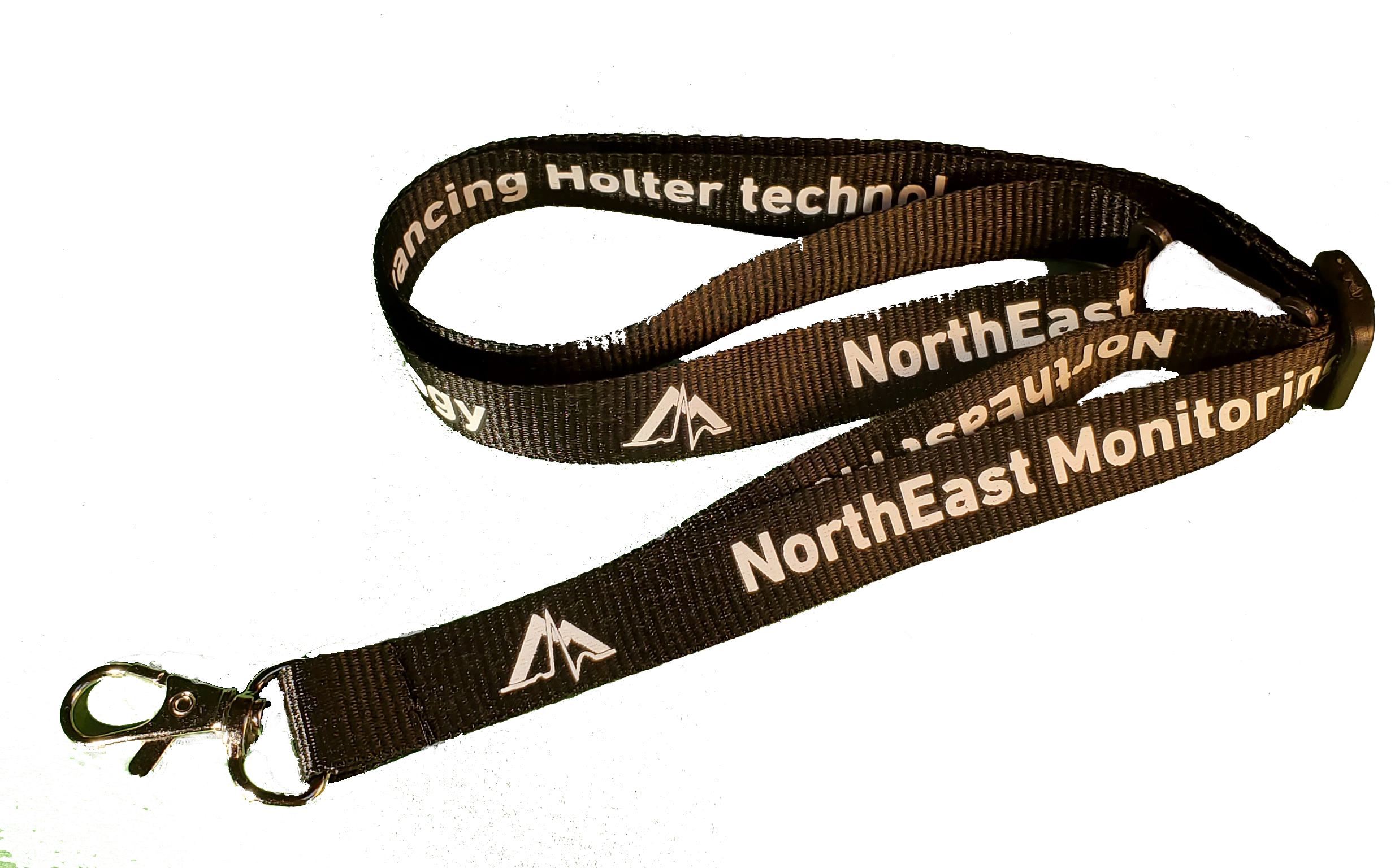

  • Lanyard for 3-Lead Adapter - NEMH238

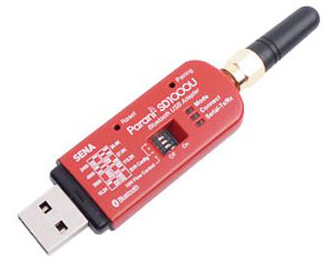

  • Bluetooth USB Adapter - NEMP00513

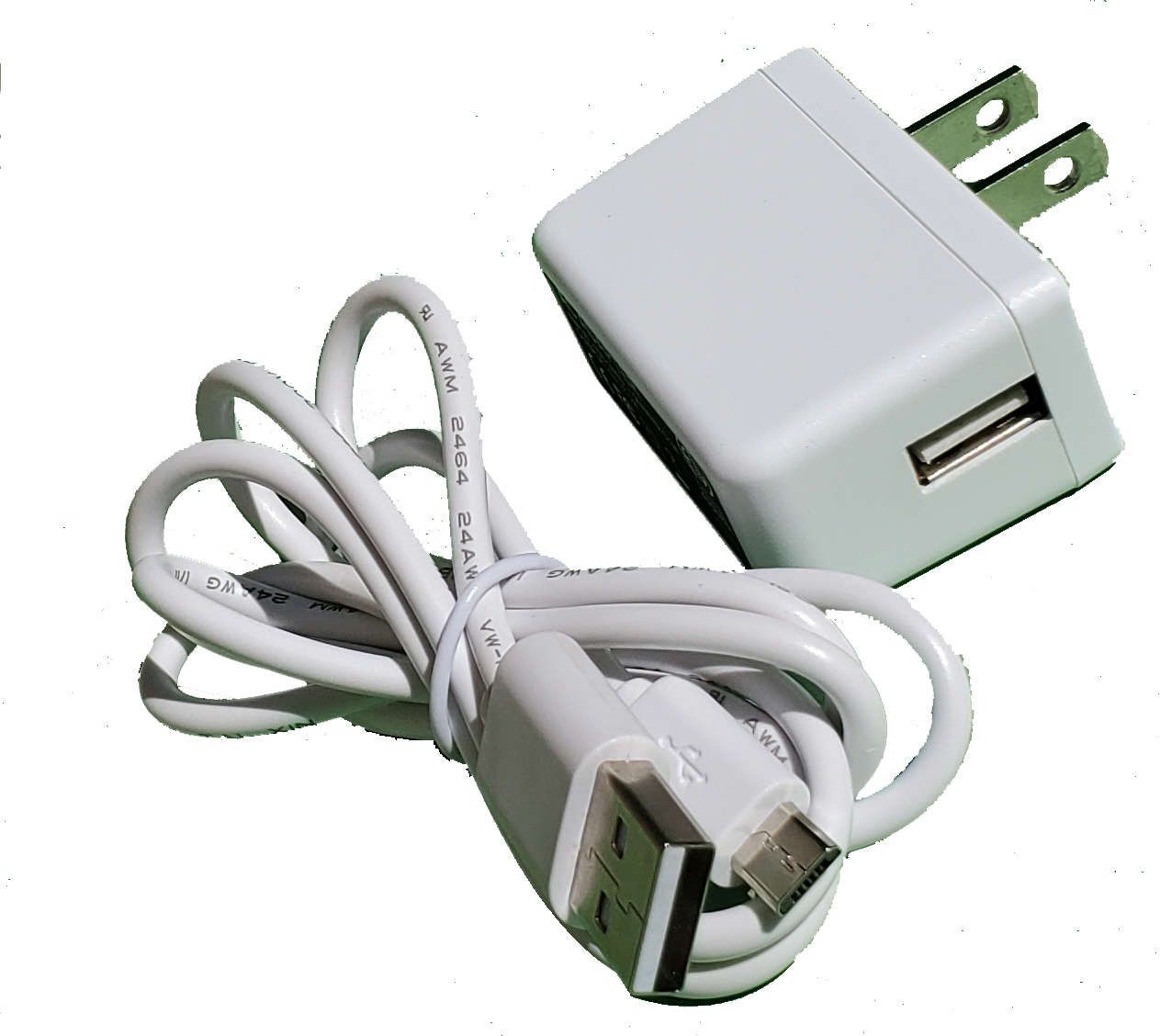

  • USB Power Adapter (3 ft power cable) - NEMP00511

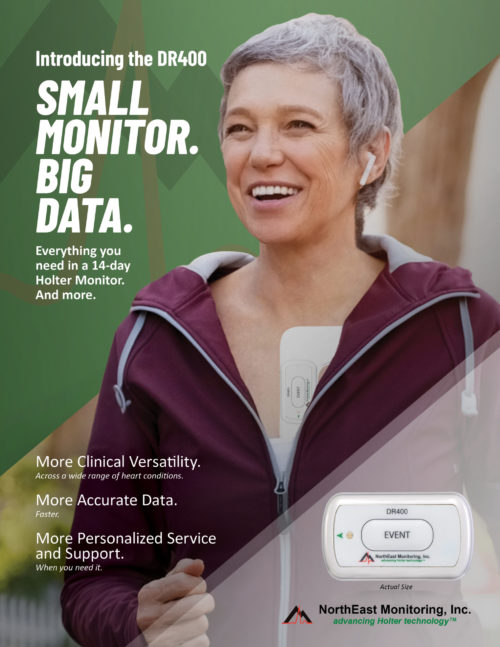

    For more information on the DR400 patch style recorder
